Ready To Carve?
Have a question about our products or capabilities? We are happy to answer any questions you have and guide you through the process of deciding what you need.
Build Your RAVEN Bundle
Original price was: $3,899.99 – $7,693.87.$2,399.99 – $5,428.19Current price is: $2,399.99 – $5,428.19.

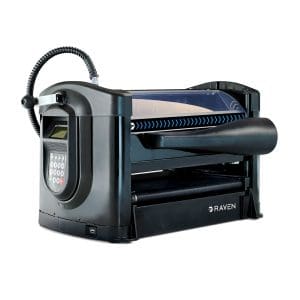

The RAVEN CNC Router is the most exciting machine in world of CNC routing. Equipped with a powerful brushless spindle and feed-through work area, this machine is capable of accurately tackling a wide range of materials at any size.
Every RAVEN Bundle Includes:
- RAVEN CNC – 40% OFF
$3,500$2,100 - Designer 5 Software – 25% OFF
$399.99$299.99 - Brushless Spindle Motor

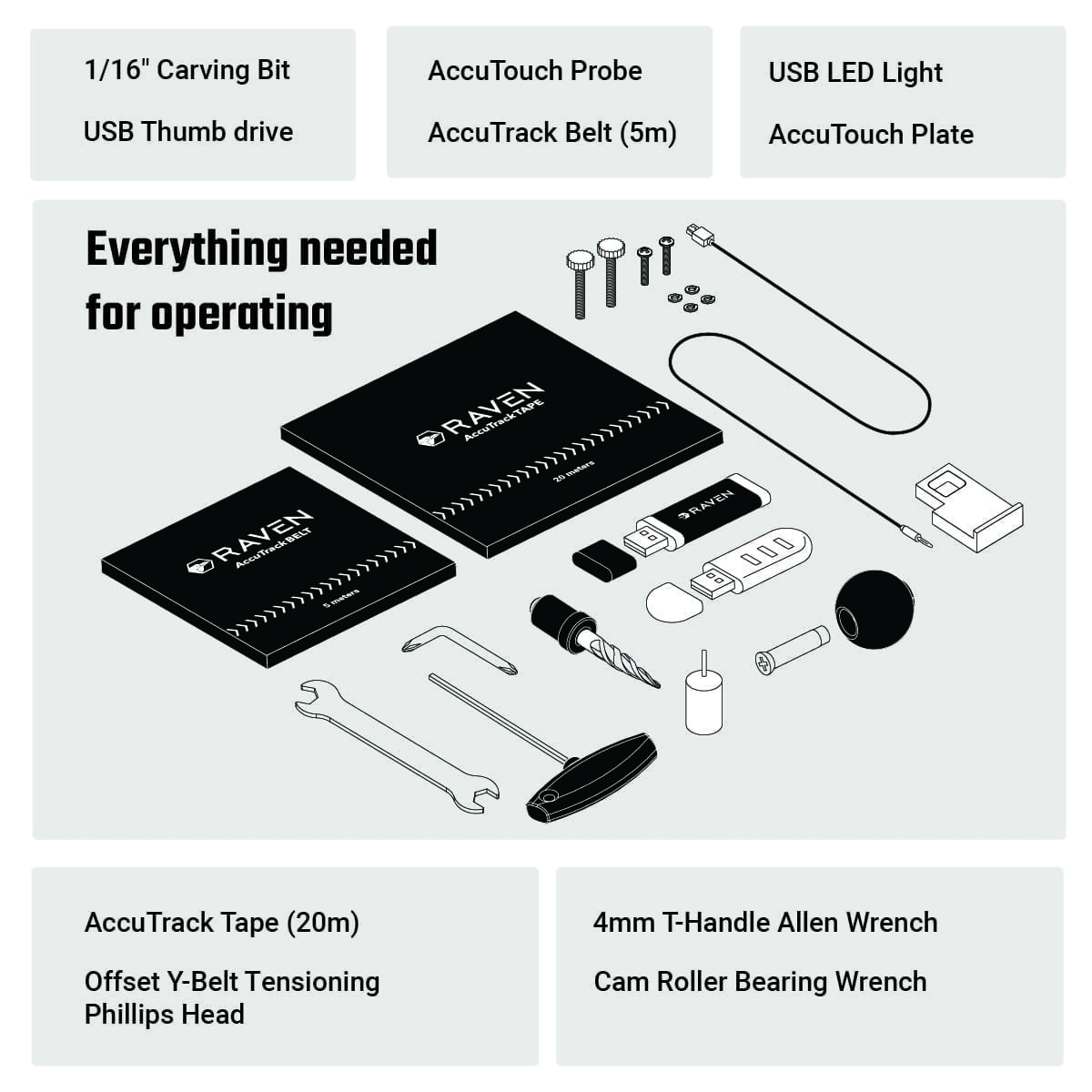

- Raven Accessory Kit
Use the configurator below to add more to your bundle!
COMPLETE CNC MADE EASY

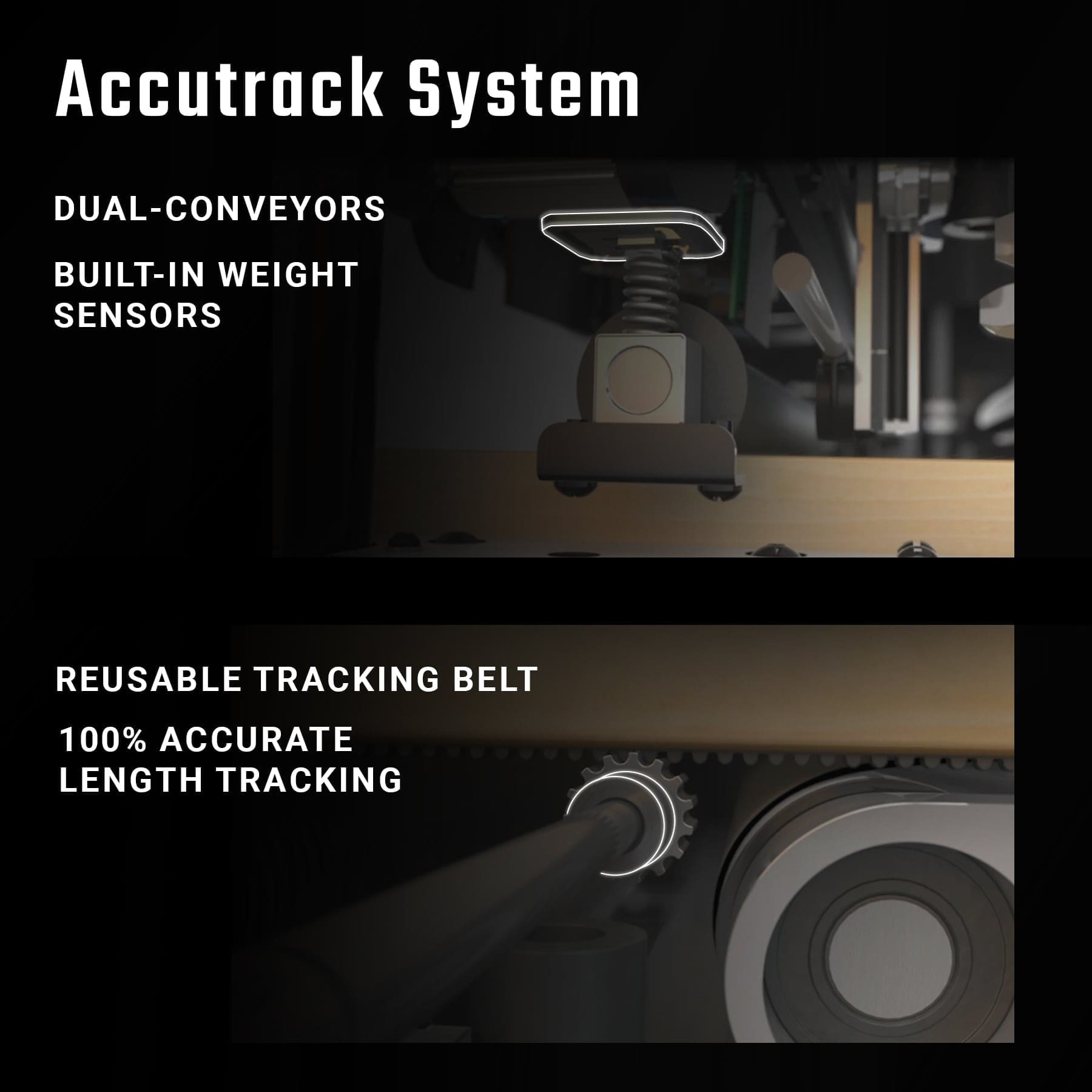

RAVEN CNC routers are designed with technology to make creating easier, faster, and larger than any similar machine. The Accutrack feedthrough gives the machine a huge size capability while maintaining perfect accuracy. It’s servo motors and advanced ServoSmart controller give it the intelligence to move fast and react to conditions. Then, with a brushless spindle motor, it has an incredible power ratio in a compact and virtually indestructible cutting machine. Pair all this with Designer 5 software’s intuitive user interface and you have the most capable and versatile CNC router on the market. By far.
SPECS
Capabilities
- Full three-axis CNC
- 3D carving, cutting, and routing
- Build Volume (max project size)

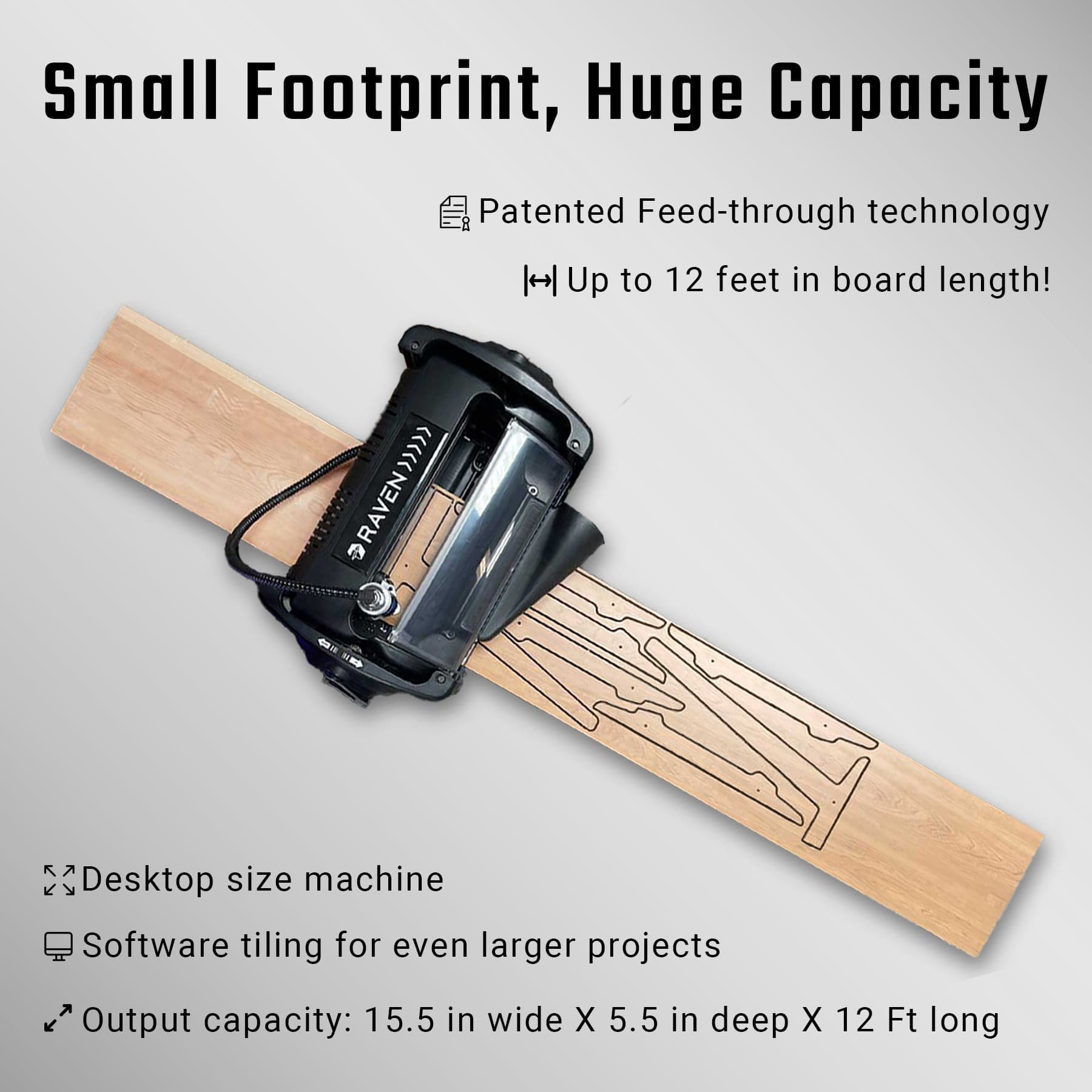

- 15.5in (39.37cm) x 5.5in (13.97cm) x 12ft (365.76cm)
- Max Encoder Resolution
- 0.0003in (0.000762cm)
- Speeds
- Spindle – 3,000-22,000 rpm
- Carving speed – up to 6 ips (15.24 cps)
- Jogging speed – 9.3 ips (23.622 cps)
- Full three-axis CNC
Software
- Software Bundle

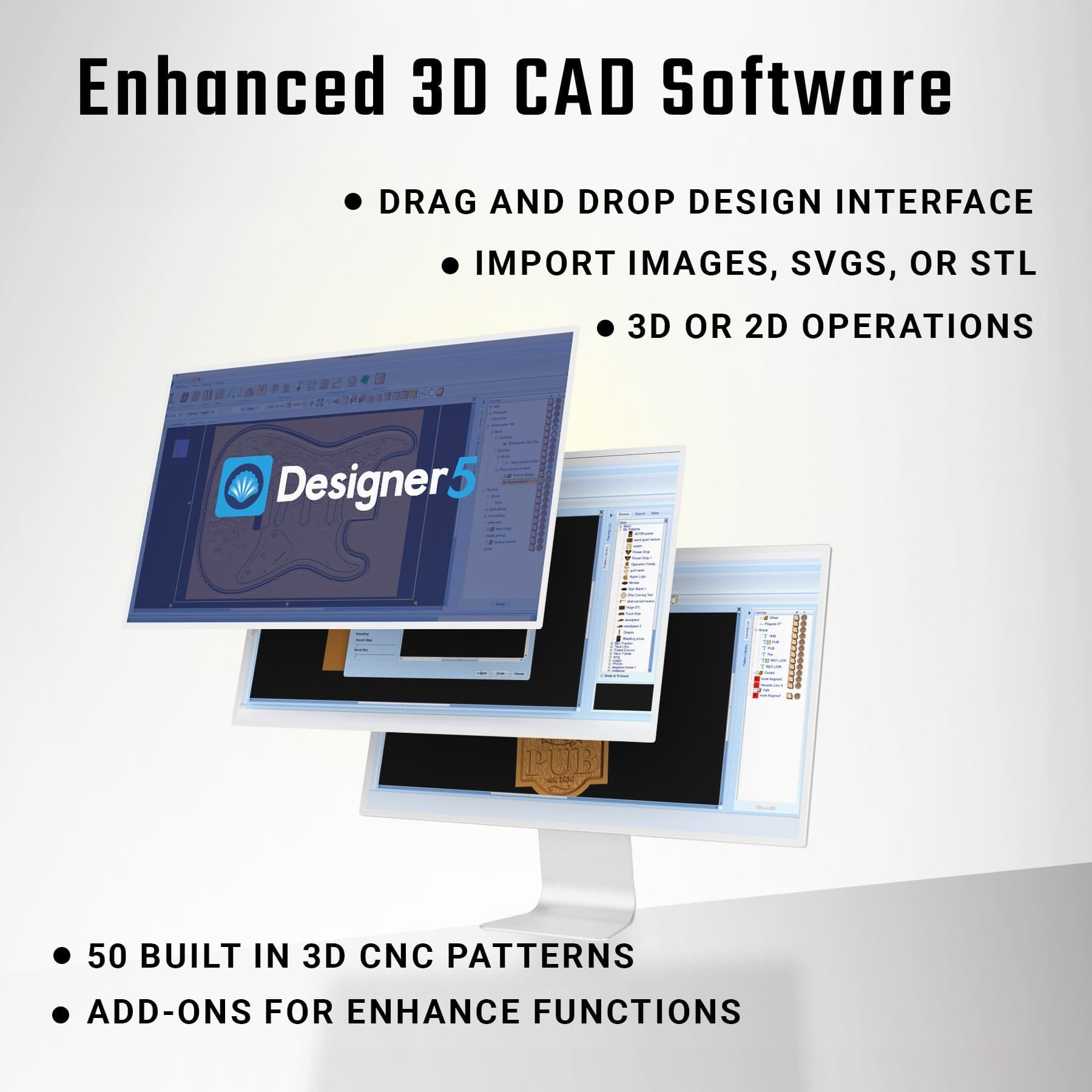

- Designer 5
- 50 Included 3D carving patterns
- File Types
- RVN, PTN, MPC, MPW
- Imports STL, SVG, PNG, JPG, BMP, and GIF
- Add-ons import DXF, OBJ
- Operating Systems
- Windows (10+)
- Mac OS X (10.6+)
- Connectivity
- USB Flash Drive
- Controller
- ServoSmart™ 2 Advanced Motion Control
- Five feedback loops
- LCD graphics screen
- Easy, guided zeroing setup
- Problems anticipated automatically
- Pre-calculated backlash
- Auto-corrected slipping
- ServoSmart™ 2 Advanced Motion Control
- Software Bundle
Mechanical Components
- Chassis
- Cast aluminum head and trucks
- Body
- Painted steel and ABS plastic
- Feed-through Belts
- Heavy-duty rubberized PVC
- Linear Bearings
- Double-row precision roller bearings
- Brushless Spindle Motor
- 675 w continuous output motor
- Peak 1.25hp
- Speed range 3,000–22,000 rpm
- Dust-free air cooling design
- CarveTight™ Spindle Chuck
- Single-piece hardened steel
- High-speed phenolic cage bearings
- Single clamping paw
- Servo Motors
- Mabuchi servo motors
- 1296 encoder counts per revolution
- Chassis
Operational
- Storage Temperature
- 32°–105° F (0–41º C)
- Operating Temperature
- 50°–105° F (10–41º C)
- AC Input – Universal Power Supply
- 90-240V, 50–60 Hz
- Storage Temperature
Dimensions
- Product Dimensions
- 19in (45.72cm) x 13in (33.02cm) x 15in (38.1cm)
- Shipping Package Dimensions
- 29in (73.66cm) x 21in (53.34cm) x 20in (50.8cm)
- Product Weight
- 70 lbs (31.75 kg)
- Shipping Weight
- 72 lbs (32.66 kg)
- Product Dimensions
