This Bundle Include:

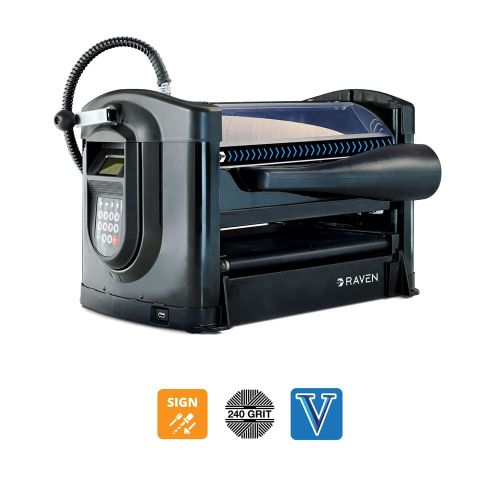

- RAVEN CNC
- Raven Accessory Kit
- SOFTWARE
- Designer 5
- Vcarve Suite
- BITS
- ACCESSORIES
Specs
- Capabilities
- Full three-axis CNC
- 3D carving, cutting, and routing
- Build Volume (max project size)
- 15.5in (39.37cm) x 5.5in (13.97cm) x 12ft (365.76cm)
- Max Encoder Resolution
- 0.0003in (0.000762cm)
- Speeds
- Spindle – 3,000-22,000 rpm
- Carving speed – up to 6 ips (15.24 cps)
- Jogging speed – 9.3 ips (23.622 cps)
- Full three-axis CNC
- Software
- Software Bundle
- Designer™ 5
- 50 Included 3D carving patterns
- File Types
- RVN, PTN, MPC, MPW
- Imports STL, SVG, PNG, JPG, BMP, and GIF
- Addons import DXF, OBJ
- Operating Systems
- Windows (10+)
- Mac OS X (10.6+)
- Connectivity
- USB Flash Drive
- Controller
- ServoSmart™ 2 Advanced Motion Control
- Five feedback loops
- LCD graphics screen
- Easy, guided zeroing setup
- Problems anticipated automatically
- Pre-calculated backlash
- Auto-corrected slipping
- ServoSmart™ 2 Advanced Motion Control
- Software Bundle
- Mechanical
- Chassis
- Cast aluminum head and trucks
- Body
- Painted steel and ABS plastic
- Feed-through Belts
- Heavy-duty rubberized PVC
- Linear Bearings
- Double-row precision roller bearings
- CarveTight™ Spindle Chuck
- Single-piece hardened steel
- High-speed phenolic cage bearings
- Single clamping paw
- Servo Motors
- Mabuchi motors
- 1296 encoder counts per revolution
- Brushless Spindle Motor
- 675 w continuous output motor
- Peak 1.25hp
- Speed range 3,000–22,000 rpm
- Dust-free air cooling design
- Chassis
- Operational
- Storage Temperature
- 32°–105° F (0–41º C)
- Operating Temperature
- 50°–105° F (10–41º C)
- AC Input – Universal Power Supply
- 90-240V, 50–60 Hz
- Storage Temperature
- Dimensions
- Product Dimensions
- 19in (45.72cm) x 13in (33.02cm) x 15in (38.1cm)
- Shipping Package Dimensions
- 29in (73.66cm) x 21in (53.34cm) x 20in (50.8cm)
- Product Weight
- 80 lbs (36.3 kg)
- Shipping Weight
- 85 lbs (38.6 kg)
- Product Dimensions
