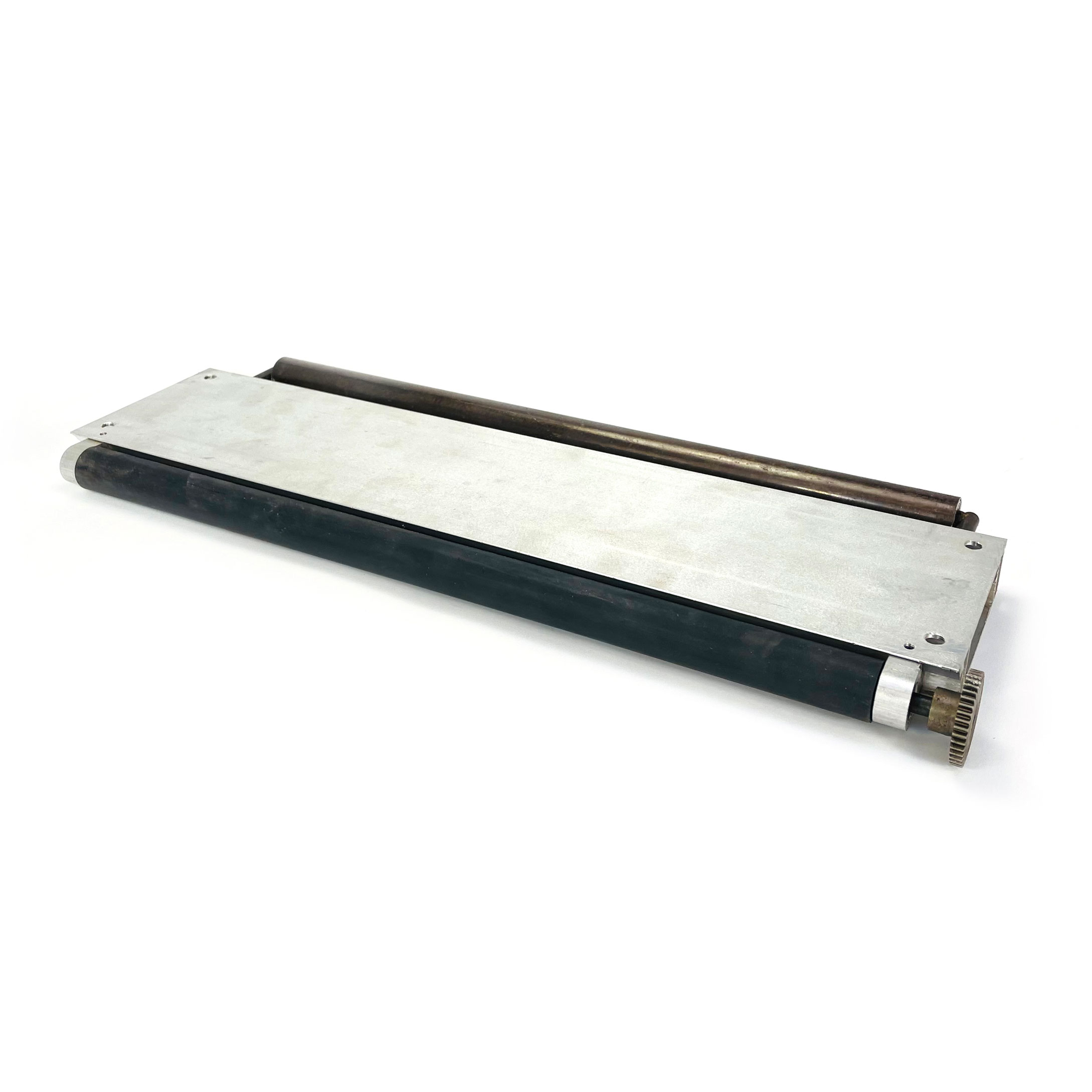

X-Drive Conveyor Back Assembly

This assembly is the smallest component sold to customers. This assembly includes the following parts:

• 2 x SSM-M30.5-05ABC (Setscrew – Cone Point M5 X 0.8, 6MM Long)
• 2 x P008-00039 (Spring Pin .125 Dia, .975 Long)
• 2 x MWM P1229 (Compression Spring Sandpaper Belt Tension)
• 2 x MWM P1098 (Sandpaper Belt Tracking Guide)
• 1 x MWM P1066 (X – Drive Gear)
• 1 x MWM P1008 (X – Drive Sandpaper Belt Support Tray – Extruded)
• 1 x MWM A2071 (Sandpaper Belt 220 Grit, .025 Thick)
• 1 x MWM A2050 (X – Drive Active Roller Support Assembly – LH)
• 1 x MWM A2048 (X – Drive Active Roller Support Assembly – RH)
• 1 x MWM A2039 (X – Drive Idle Roller Support Assembly)
• 1 x MWM A2035 (X – Drive Active Roller Assembly)
