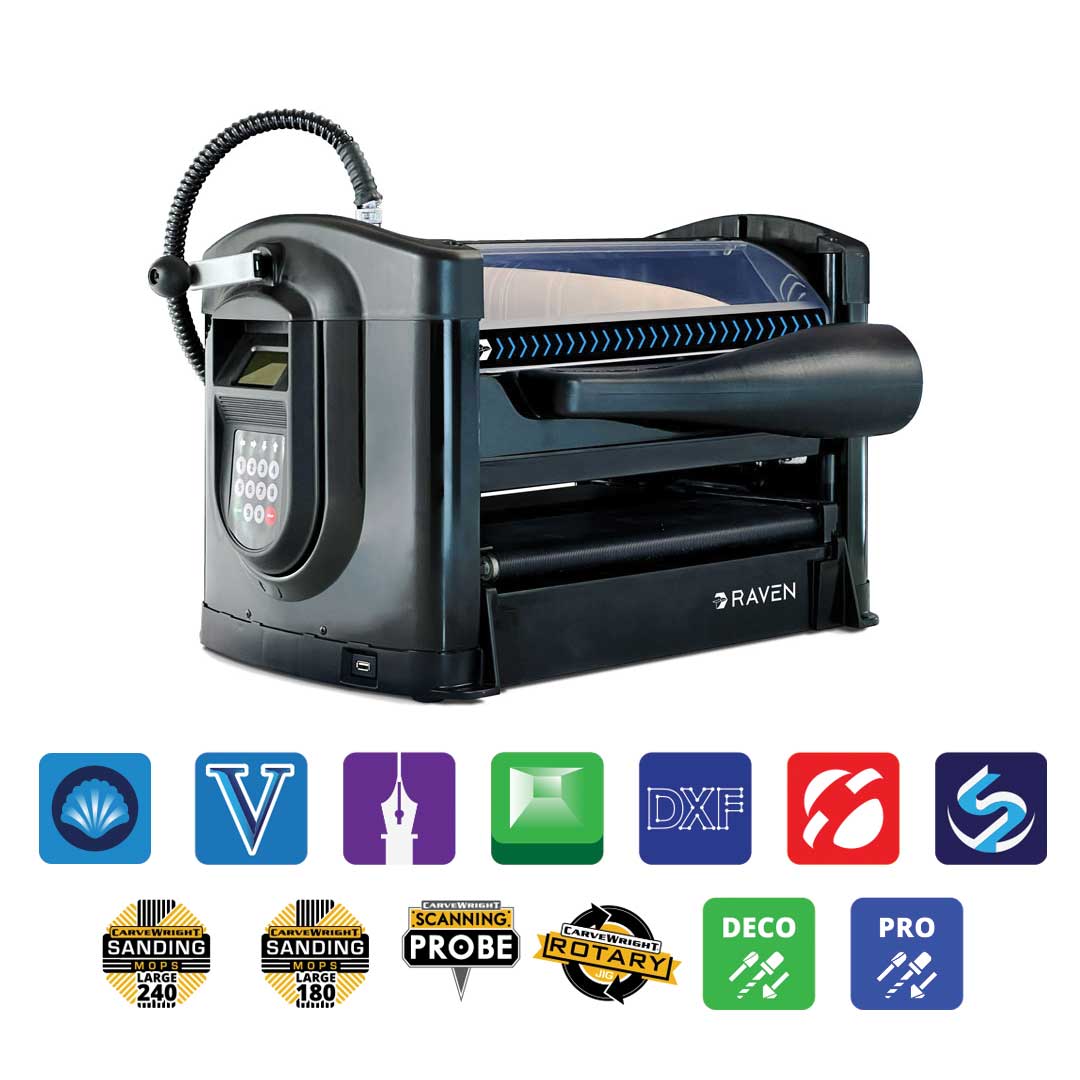

CarveWright Innovator Lab Package

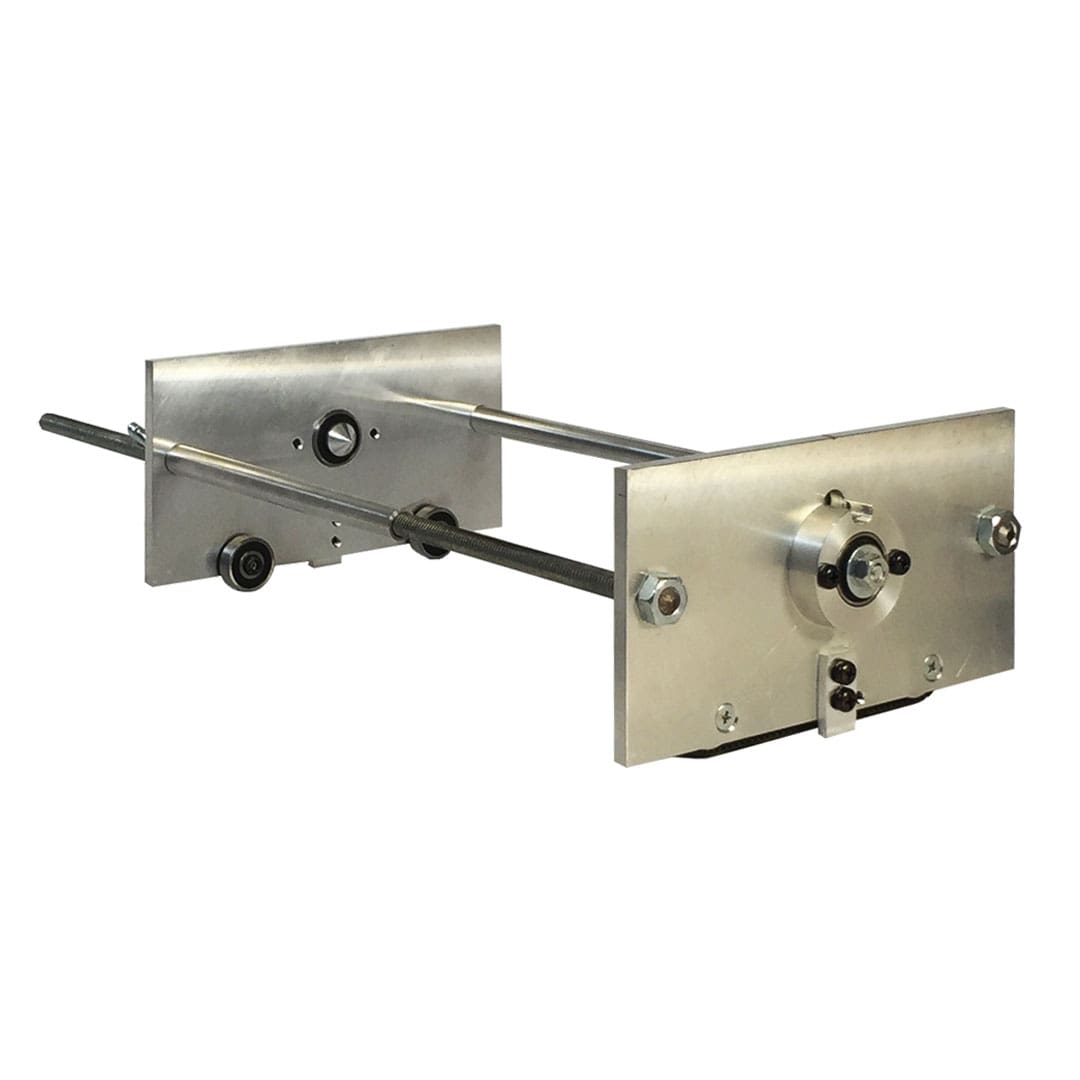

The CarveWright Rotary Jig allows for carving in-the-round. Material is loaded in the jig, the jig is loaded in the machine, and it will rotate the material while carving.

The CarveWright Scanning Probe opens up the world of 3D scanning. Reproduce original pieces, repair antique furniture, even copy trim and moldings with ease. Almost any material can be scanned, even soft materials, such as clay or wax. Just plug the probe into your CarveWright CNC machine, set the desired scan area, and watch the probe go to work.

Two flute, 1/4 inch steel shank, carbide tipped, keyhole bit, with 3/8 inch diameter. Sold as replacement for use with the CarveWright Keyhole function add-on.

Specifications
• Requires Keyhole Function Add-on
• Requires 1/4″ Split Collet
• 1/4″ Stop Collar recommended

Configured specifically for CarveWright CNC Systems, our top quality all carbide cutting and carving bits are designed for long-life and precise cutting performance.

The PRO Cutting & Carving Bit Set includes:

• 1/32" Carving Bit (lime)
• 1/16" Cutting Bit w/split collet
• 1/16" Carving Bit (white)
• 1/8" Cutting Bit (orange)
• 1/8" Carving Bit (green)
• 3/16" Cutting Bit (yellow)
• 3/16" Carving Bit (purple)
• 1/16" Long Carving Bit (red)
• 1/8" Long Carving Bit (blue)

This complete set of router bits is everything you'll need to add those decorative touches to any project.  Configured specifically for all CarveWright CNC Systems, these top quality carbide decorative bits are designed for long-life and precise cutting performance.

This Bit Set includes:

• 60° V Bit
• 90° V Bit
• 1/4" Diameter Ball Nose Bit
• 1/2" Diameter Ball Nose Bit
• 3/8" Diameter Straight Bit
• 3/8" Radius Classic Ogee Bit
• 1/2" Radius Classic Ogee Bit
• 1/8" Radius Roman Ogee Bit
• 3/16" Radius Roman Ogee Bit
• 1/4" Radius Round Over Bit
• 1/2" Radius Round Over Bit
• 1/4" Collet
• 1/4" Rubber Stops
• 1/2" Rubber Stops

The Large 240 Grit Sanding Mop is for less aggressive sanding of woods and plastics on larger projects. Sanding mops are a quick and easy way to sand and prepare your carvings for paint or stain. The mop turns as its frayed sandpaper edges polish your project.

• The Sanding Mop does not attach to the machine.
• Secure your sanding mop to a hand held drill, drill press or lathe.
• The Sanding Mop is available in either 1.5 or 3" Spindle sizes.
• Replacement packs are also available.

The Large 180 Grit Sanding Mop is for aggressive sanding of woods and plastics on larger projects. Not recommended for soft woods. Sanding mops are a quick and easy way to sand and prepare your carvings for paint or stain. The mop turns as its frayed sandpaper edges polish your project.

• The Sanding Mop does not attach to the machine.
• Secure your sanding mop to a hand held drill, drill press or lathe.
• The Sanding Mop is available in either 1.5 or 3" Spindle sizes.
• Replacement packs are also available.

The intuitive and easy-to-use Designer 5 software is second-to-none in bringing advanced carving capabilities to every level of user. The system is designed to allow users to expand their capabilities affordably without the large expense of other CNC software. Designer 5 works with both RAVEN CNC Routers, older A/B/C model CarveWright CNCs, and outputs G-CODE.

Try out the software today with a free trial.  DOWNLOAD

The Vcarve Suite is a set of chip carving tools for Designer that allows for using V-bits to carve graphics and centerline text. It includes a conforming vectors merge style and an outline edit tool for preparing vectors for Vcarving.

The Modeling Suite is a tool bar add-on for Project Designer that enables modeling of 3D relief patterns. Extrude, sweep, and puff shapes into dimensional creations. These tools are easy-to-use and makes your own custom pattern design fun and simple.

Slicer, allows users to open 3D STL models and slice them into patterns for the use in the CarveWright Designer software. Carve these slices to assemble full 3D carvings. This is done by scaling the model to the desired output size, and then slicing, or cutting, it into pieces that can be carved on a flat board by the machine.  The cut angles and depths can be customized to give the best possible strategy for retaining the details of the model. These slices, once carved, can then be reassembled into a physical 3D model.

DXF Layout allows the user to import 2D vector files created in 3rd Party software packages. DXF is a common format for vector software such as AutoCad, Illustrator, CorelDraw, and more. DXF Layout's tools allow for scaling, rearranging, flipping, rotating, auto-connecting of lines, splitting (tiling designs), create boards to layout shapes, and ultimately, importing those boards into Designer to be carved or cut out.

Sculptor is a sculpting and editing software tool for 3D relief carving patterns. Quickly and intuitively, smooth, smudge, and add or remove details to prepare patterns for carving.

DOWNLOAD SOFTWARE

Harness the power and ease-of-use of Designer software with a wide variety of machines. Compile G-code allows Designer to output G-code to be used with other CNC router post processors.

• Requires Designer 5

The Keyhole Function enables plunge cutting keyhole shaped mounting slots in items such as picture frames and plaques. It’s a quick an easy way to automate making these hanging slots so your work can be displayed. With Designer’s ability to design on the front and back of your boards, adding these professional looking hanging slots becomes simple. The keyhole bit required for this is included with this module.

This is an activation code for a CarveWright Rotary jig for a used jig or organizations wishing to add more licenses. Rotary Jigs that are purchased NEW will already include this activation code.

The Scanning Probe software is included with the purchase of a CarveWright Scanning Probe. Its primary purpose is to provide tools for downloading and quickly cleaning up scans for carving.  Once finished, the patterns can be saved directly to Designer’s pattern library for immediate integration into your designs for carving.
