Carving Big with Confidence: How RAVEN Creates Large-Scale 3D Carvings Using Slicer

Large 3D CNC carving often seems limited by machine size. However, the RAVEN CNC changes that assumption. When paired with the Designer Slicer Add-On Module, RAVEN allows makers to carve oversized 3D reliefs with precision and confidence.

By slicing large 3D models into smaller sections, users can create projects far bigger than the machine itself. As a result, complex and dramatic artwork becomes possible in shops of any size.

One standout example is a five-foot-tall rearing horse relief. This project showcases how smart software and thoughtful machine design remove traditional CNC size limits.

What the Designer Slicer Add-On Module Does

The Designer Slicer Add-On Module allows users to divide large 3D models into manageable carving sections. Instead of scaling projects down, makers can work at full size.

With Slicer, you can:

• Import detailed 3D models
• Scale them to real-world dimensions
• Slice the model into precise sections
• Save each slice to the Designer Pattern Library

Because of this workflow, large CNC carving becomes predictable and repeatable.

Why the RAVEN CNC Excels at Large 3D Projects

The RAVEN CNC stands out because of its material feed-through capability. Unlike fixed-bed CNC machines, RAVEN advances material through the machine during carving.

As a result, users can carve:

• Tall 3D reliefs
• Long panels
• Multi-section sculptures

In addition, RAVEN maintains consistent accuracy from one section to the next. That consistency matters when projects require precise alignment.

Project Example: A Five-Foot-Tall Rearing Horse Relief

To demonstrate large 3D CNC carving, we created a five-foot-tall horse relief using RAVEN and Slicer.

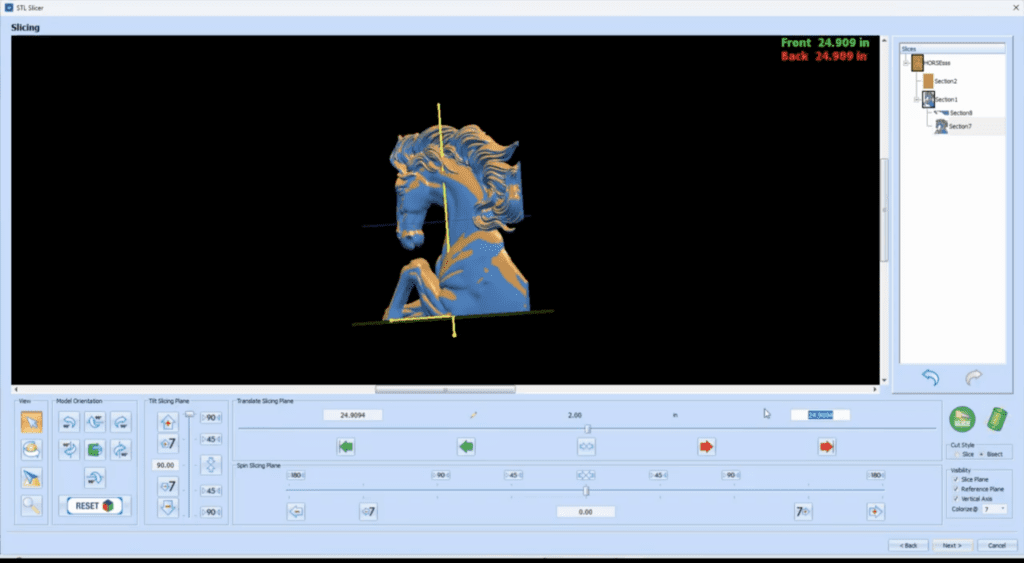

First, we imported the 3D horse model into Designer. Next, we scaled it to its final height. Then, we sliced the model vertically into multiple sections sized for the RAVEN.

Each slice preserved the depth and detail of the original sculpture. Consequently, the carved sections retained muscle definition, motion, and texture.

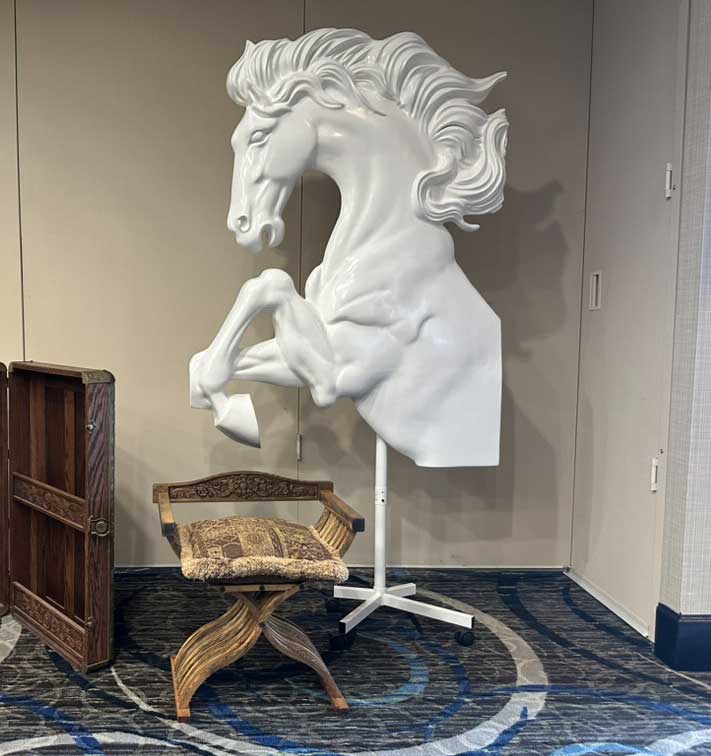

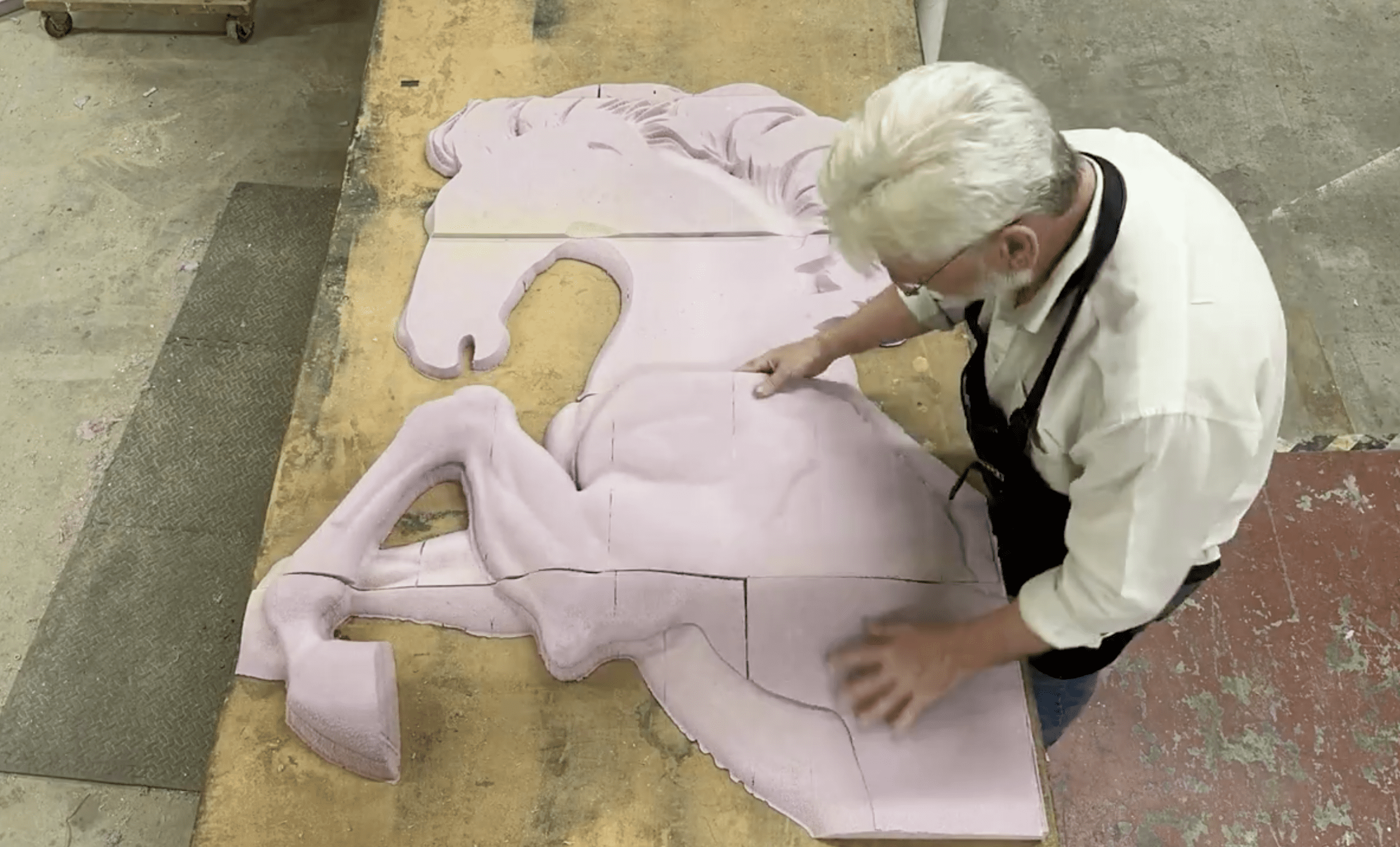

After carving, the sections assembled into a single, dramatic relief. The finished piece looks as if it came from one massive carving.

Accurate Slicing Creates Seamless Assembly

Alignment often causes concern with large CNC projects. Fortunately, Slicer removes that challenge.

The software creates each slice with exact dimensions. Because of this accuracy:

• Sections align cleanly
• Seams remain predictable
• The sculpture flows naturally

For example, the rearing horse maintains continuous motion from top to bottom. The finished artwork delivers a professional, gallery-quality appearance.

Step-by-Step Workflow for Large 3D CNC Carving

Creating large 3D carvings on the RAVEN follows a clear process:

1. Import the 3D model into Designer
2. Scale the model to final size
3. Slice the model using the Slicer Add-On
4. Save slices to the Pattern Library
5. Carve each section using RAVEN’s feed-through design
6. Assemble and finish the project

Because this workflow stays consistent, users can repeat results across many projects.

Think Bigger with RAVEN CNC and Slicer

Large 3D CNC carving no longer requires industrial equipment. Instead, the RAVEN CNC and Designer Slicer Add-On Module give makers the tools to work bigger.

From architectural panels to dramatic relief sculptures, RAVEN supports ambitious ideas. Most importantly, it allows creators to focus on design rather than machine limits.

If you can imagine it, you can carve it—one perfectly aligned slice at a time.
